Crystals & Oscillators
Precise timing components for your electronics
Whether for microcontrollers, communication devices, or industrial electronics – our crystals and oscillators ensure stable and precise timing for your electronic circuits. Available across a wide range of frequencies, they offer outstanding long-term stability.
Your benefits:
- Exceptional frequency stability
- Robust construction for industrial applications
- Wide range of variants for every electronic solution
Precise timing components from a single source
Whether you need through-hole or SMD crystals and oscillators in the kilohertz or megahertz range: we help you select the right crystal or manufacture one precisely according to your specifications.
Oscillators
A crystal oscillator is an electronic circuit that uses a quartz crystal to generate a specific frequency. Crystal oscillators are highly precise and typically exhibit deviations of less than 100 ppm.
In practice, crystal oscillators serve as timing sources in radios, processors, quartz watches and microcontrollers.
Frequency range:
20 kHz ~ 150 MHz
Frequency tolerance:
±20 ppm, ±50 ppm, ±100 ppm
Output logic:
TTL / CMOS
Power supply voltage:
VDC 3 V ~ 5 V oder 2.8 V
Input voltage VDD (DC):
3.3 V, 5.0 V, others on request
Output voltage high “1”:
– TTL: 2.4 V, others available
– CMOS: 2.97 V, 4.5 V, others available
Output voltage Low “0”:
– TTL: 0.4 V, others available
– CMOS: 0.33 V, others available
Power consumption:
15 ~ 45 mA (frequency-dependent)
Operating temperature:
–40 °C to +85 °C
Storage temperature:
-55 °C to +125 °C
Aging:
Less than ±5 ppm/year (at 25 °C ±5 °C)
Frequency range:
20 kHz ~ 150 MHz
Frequency tolerance:
±20 ppm, ±50 ppm, ±100 ppm
Output logic:
TTL / CMOS
Power supply voltage:
VDC 3 V ~ 5 V oder 2.8 V
Input voltage VDD (DC):
3.3 V, 5.0 V, others on request
Output voltage high “1”:
– TTL: 2.4 V, others available
– CMOS: 2.97 V, 4.5 V, others available
Output voltage Low “0”:
– TTL: 0.4 V, others available
– CMOS: 0.33 V, others available
Power consumption:
15 ~ 45 mA (frequency-dependent)
Operating temperature:
–40 °C to +85 °C
Storage temperature:
-55 °C to +125 °C
Aging:
Less than ±5 ppm/year (at 25 °C ±5 °C)

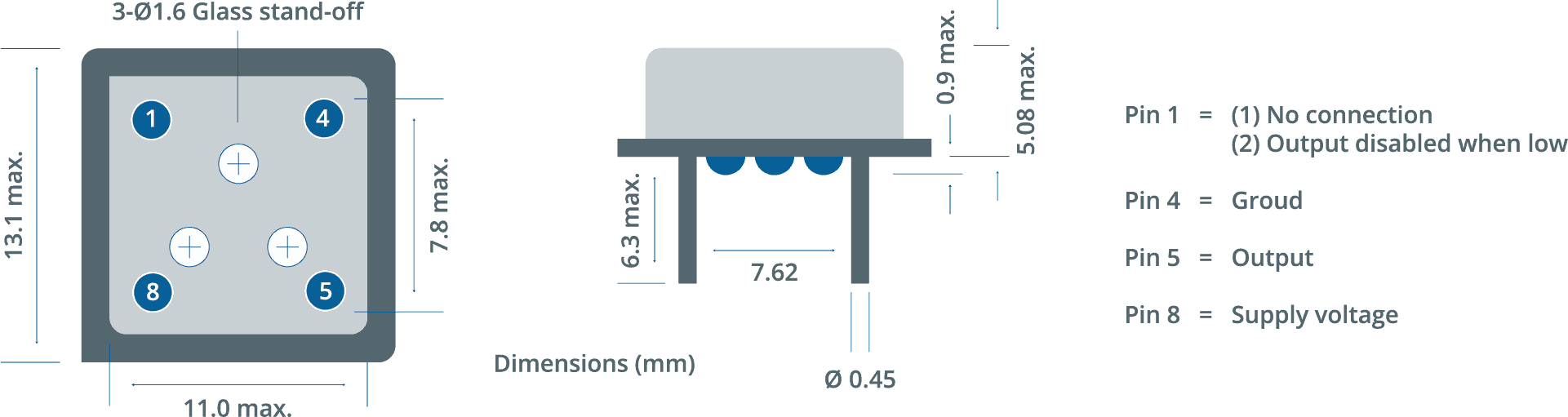

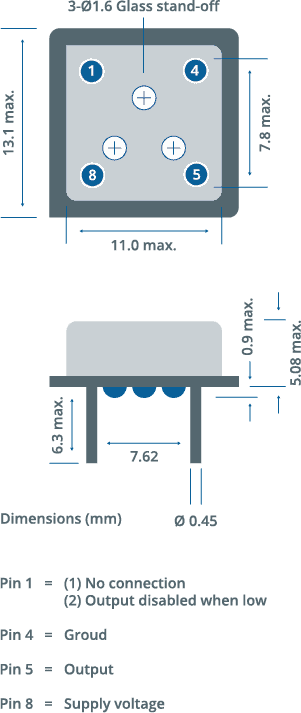

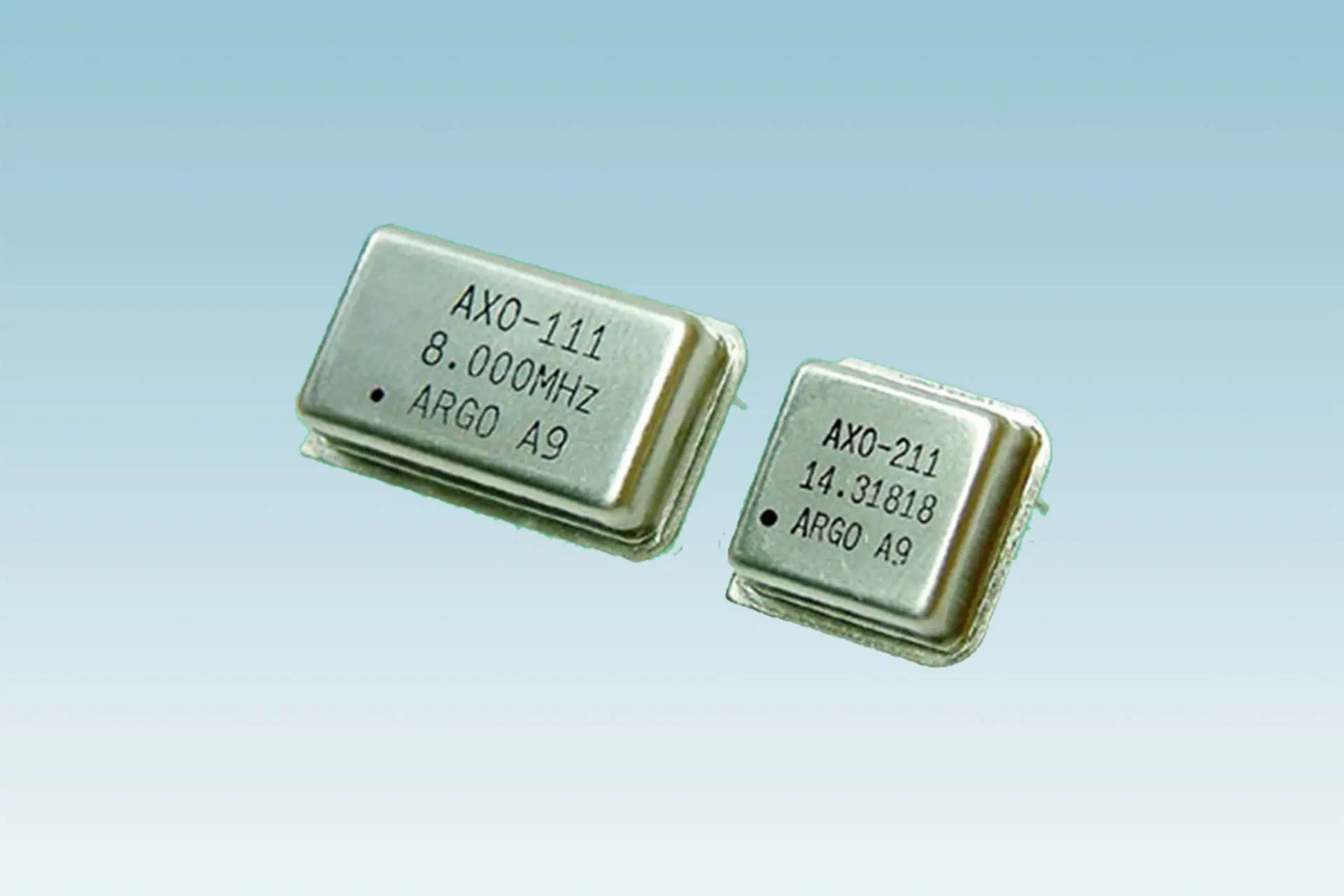

Example of a through-hole oscillator

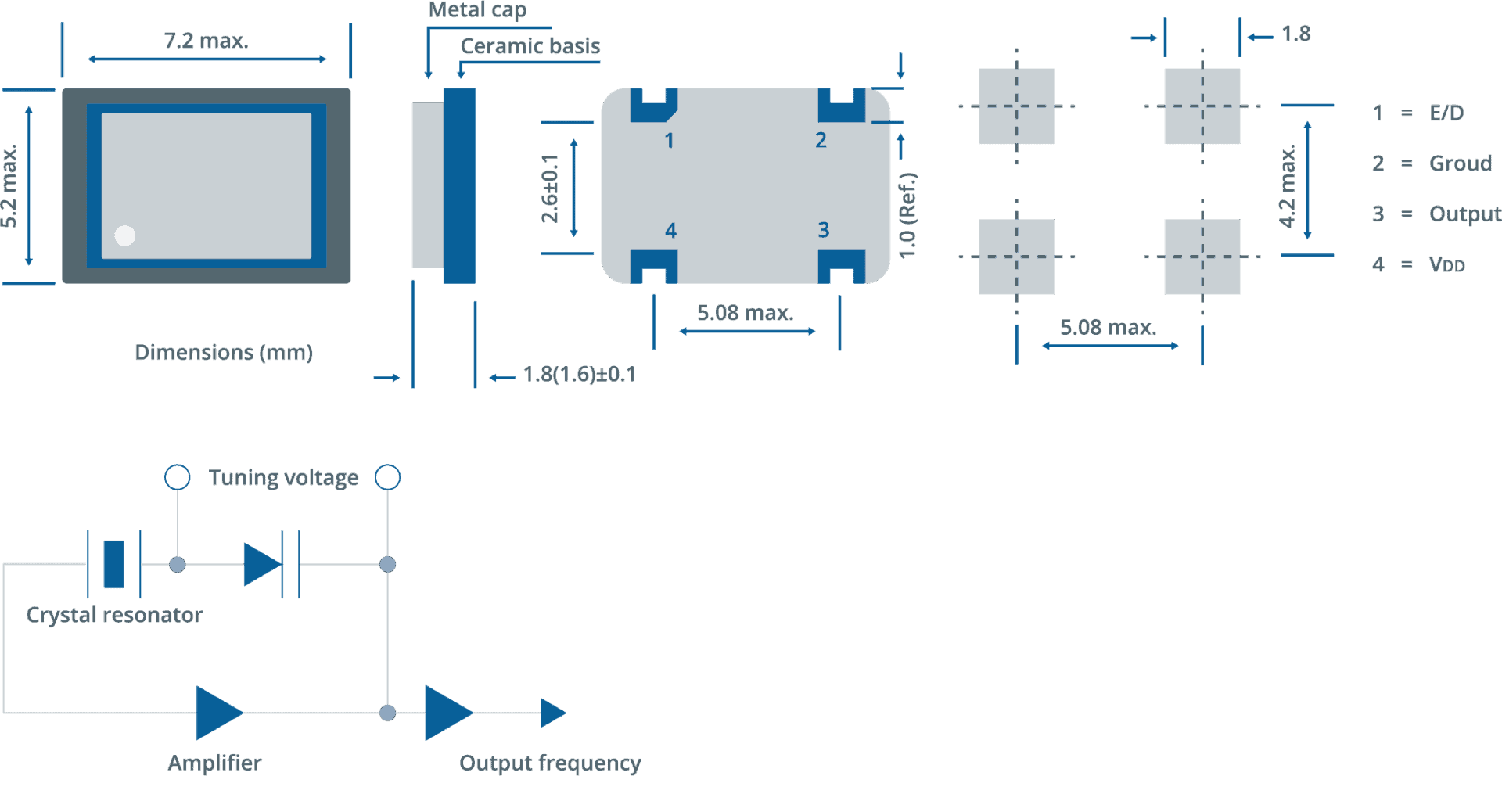

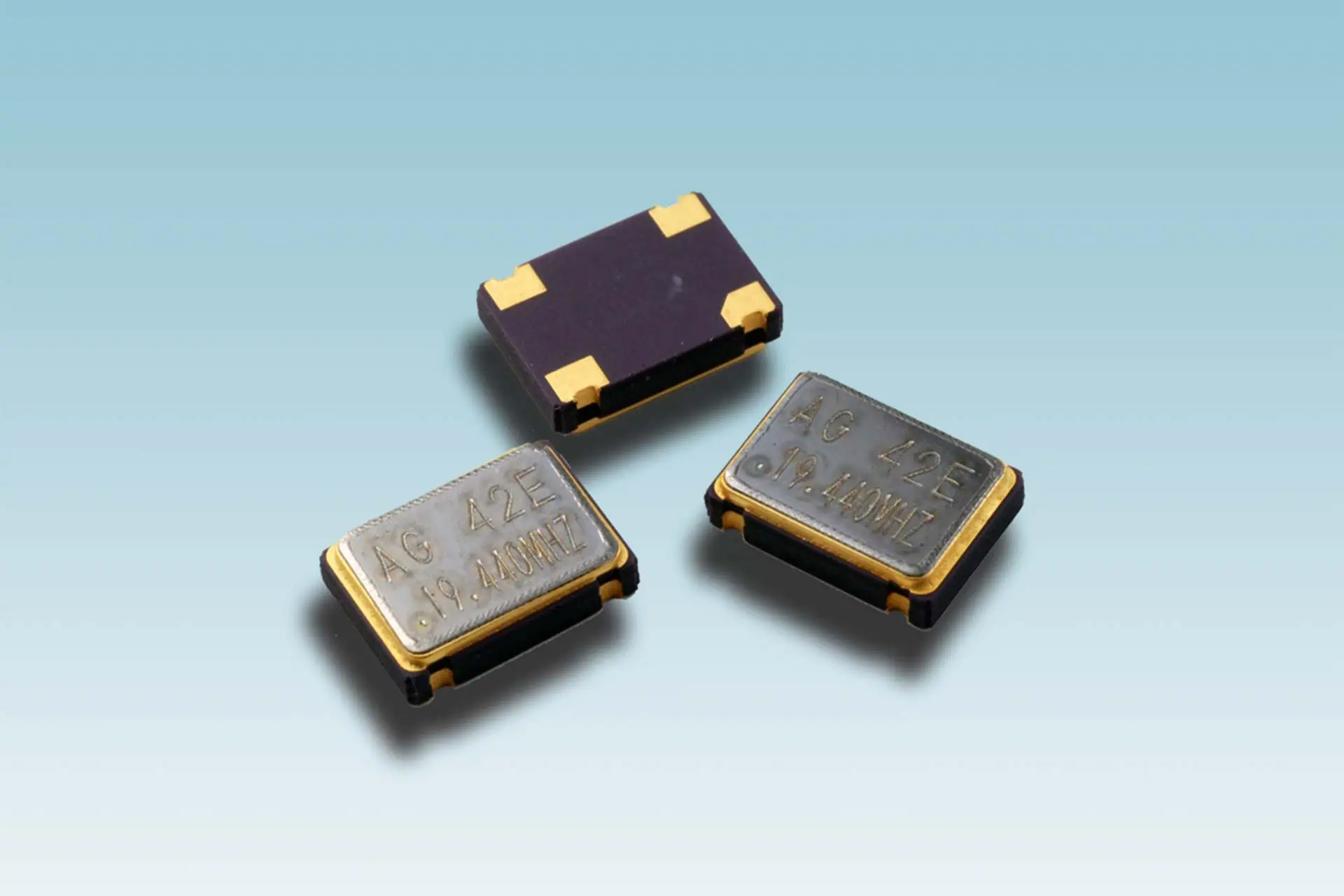

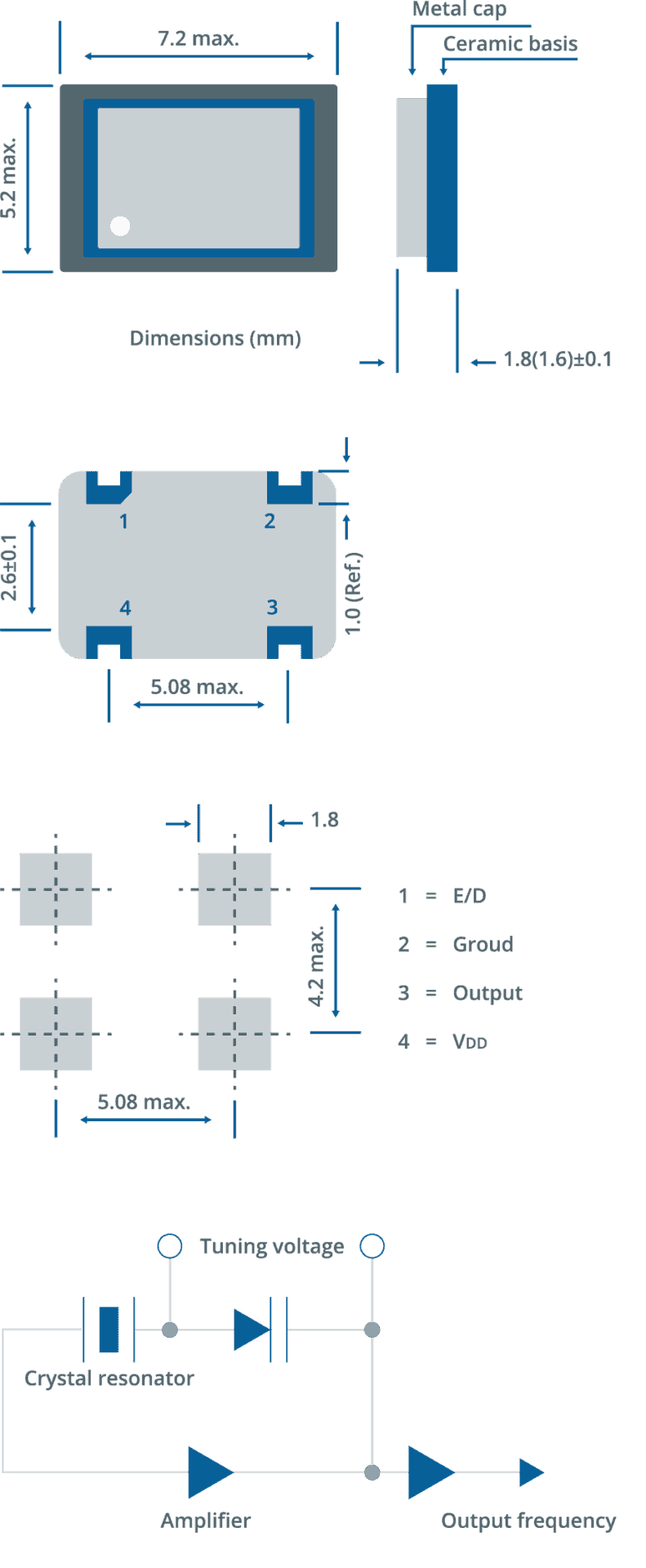

Example of an SMD oscillator
The right impulse for your technology
Quartz refers to a crystal resonator – an electronic component used in crystal oscillators that generates a precise electrical frequency. Unlike oscillators, crystal resonators require an external driving circuit to oscillate, making them a more cost-effective solution.

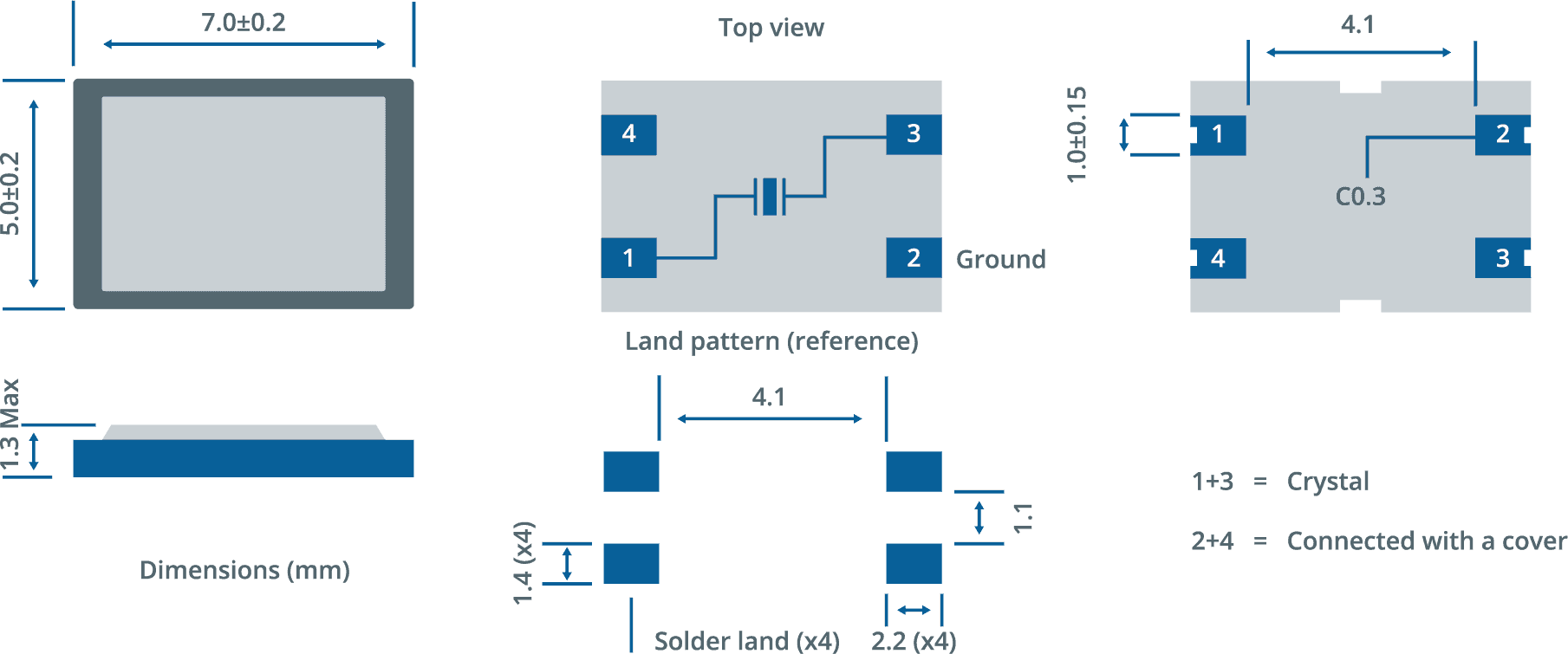

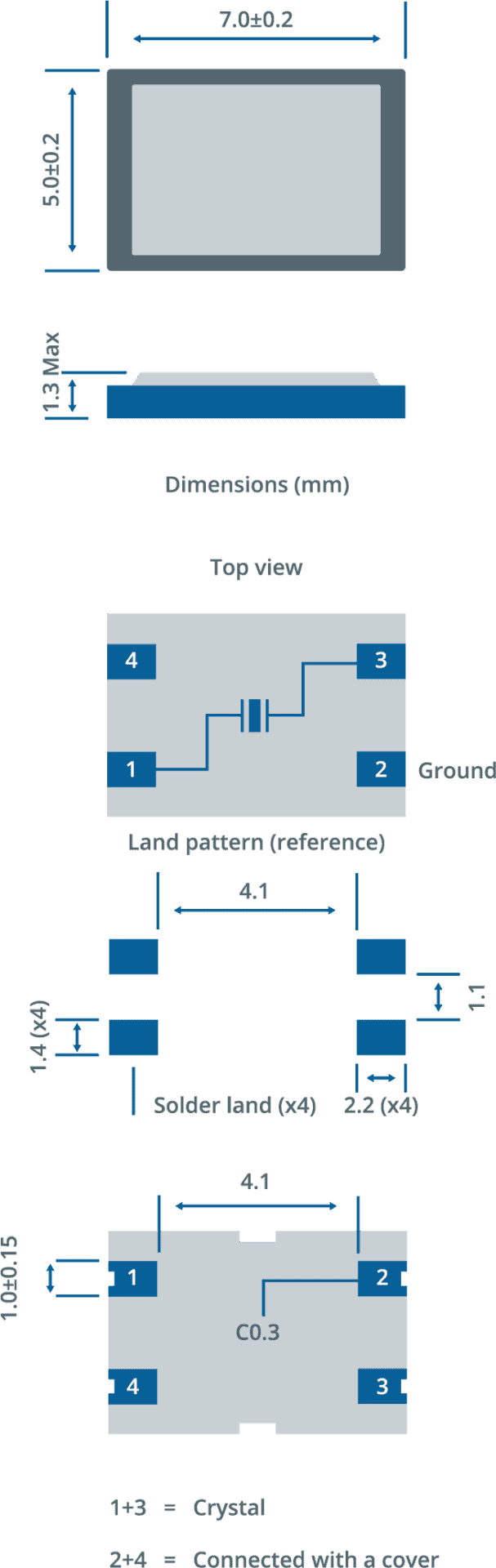

SMD crystals
Our SMD crystals are used across a wide range of electronic devices.
Frequency range (fundamental mode):
3.2 MHz to 50 MHz
Frequency range (3rd overtone):
12 MHz to 130 MHz
Frequency tolerance:
AT-cut: ±30 ppm at 25 °C
Frequency stability:
AT-cut: ±30 ppm from –10 °C to +70 °C
Shunt capacitance (Co):
Max. 7 pF
Load capacitance (Cl):
8 pF to 32 pF depending on series
Power consumption:
Typically 100 μW
Operating temperature:
–40 °C to +85 °C
Storage temperature:
–55 °C to +125 °C
Aging:
Less than ±3 ppm/year (at 25 °C ±5 °C)
Frequency range (fundamental mode):
3.2 MHz to 50 MHz
Frequency range (3rd overtone):
12 MHz to 130 MHz
Frequency tolerance:
AT-cut: ±30 ppm at 25 °C
Frequency stability:
AT-cut: ±30 ppm from –10 °C to +70 °C
Shunt capacitance (Co):
Max. 7 pF
Load capacitance (Cl):
8 pF to 32 pF depending on series
Power consumption:
Typically 100 μW
Operating temperature:
–40 °C to +85 °C
Storage temperature:
–55 °C to +125 °C
Aging:
Less than ±3 ppm/year (at 25 °C ±5 °C)
Example SMD quartz

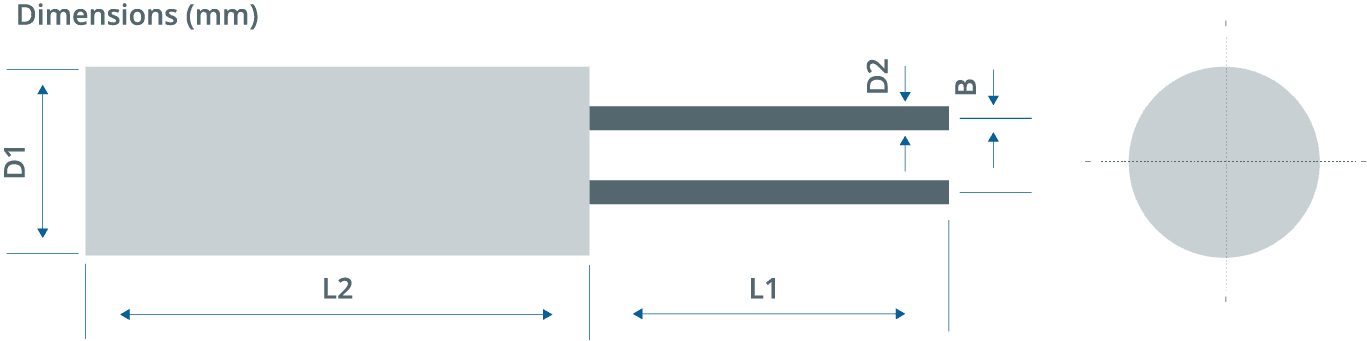

Cylindrical crystals
Cylindrical crystals are used as timing devices in computer systems and are often referred to as real-time clocks due to their high accuracy.
Frequency range:
4 MHz to 50 MHz
Oscillation mode:
– AT-cut / fundamental (4.0 ~ 30.0 MHz)
– AT-cut / 3rd overtone (30.1 ~ 50.0 MHz)
Frequency tolerance:
AT-cut: ±30 ppm at 25 °C
Frequency stability: AT-cut:
±50 ppm from –10 °C to +70 °C
Shunt capacitance (Co):
Max. 5 pF
Load capacitance (Cl):
Typ. 16 pF (as per specification)
Power consumption:
10 to 100 μW
Operating temperature:
–40 °C to +85 °C
Storage temperature:
–55 °C to +125 °C
Aging:
Less than ±3 ppm/year (at 25 °C ±5 °C)
Frequency range:
4 MHz to 50 MHz
Oscillation mode:
– AT-cut / fundamental (4.0 ~ 30.0 MHz)
– AT-cut / 3rd overtone (30.1 ~ 50.0 MHz)
Frequency tolerance:
AT-cut: ±30 ppm at 25 °C
Frequency stability: AT-cut:
±50 ppm from –10 °C to +70 °C
Shunt capacitance (Co):
Max. 5 pF
Load capacitance (Cl):
Typ. 16 pF (as per specification)
Power consumption:
10 to 100 μW
Operating temperature:
–40 °C to +85 °C
Storage temperature:
–55 °C to +125 °C
Aging:
Less than ±3 ppm/year (at 25 °C ±5 °C)

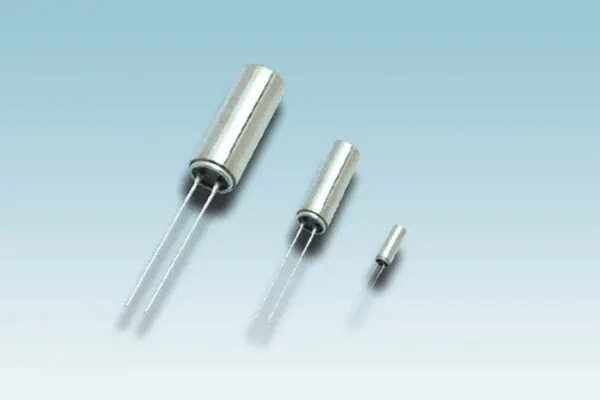

Example cylindrical crystals
Send us your non-binding
product inquiry.
FAQs
What is the difference between a crystal and an oscillator?
A crystal generates a stable frequency but requires an external driving circuit. An oscillator, on the other hand, is a self-contained timing component with integrated electronics.
What frequency ranges are available?
Typical frequencies range from a few kilohertz to over 100 MHz – depending on package type and application.
Are there solutions for 5G or IoT?
Yes, our TCXO and VCTCXO products are optimized for high-precision frequency control in modern communication systems such as 5G and IoT.
Five good reasons to choose crystals and oscillators from etronics
Quality Is Our Top Priority
For over 25 years, we have been manufacturing crystals and oscillators – tailored to customer requirements and at the highest quality standards.
Fast delivery from our Swiss warehouse
Our warehouse ensures your flexibility. For many customers, we hold stock and can deliver replenishments to their facility within two days.
We Work Only with Professionals
Reliable. High-performance. Professional. We apply a strict selection process to our crystal and oscillator suppliers.
Practice makes perfect
Our extensive experience pays off: in the design and production of crystals and oscillators, we deliver mature, field-tested solutions.
Attractive pricing
High-volume purchasing from our partners means cost advantages we pass on to you – enabling competitive pricing for your projects.
A smooth process from start to finish: Professional project execution
1. Your inquiry
2. Feasibility check & Solution development
3. Customized quotation
4. Project kickoff & Order placement
5. Prototyping & Sample production
6. Sample approval & Optimization
7. Series production & Quality assurance
8. Delivery & Logistics solutions
